PRESENTING DISTRIBUTION BOARDS THAT ENSURES YOUR SAFETY WITHOUT COMPROMISING QUALITY

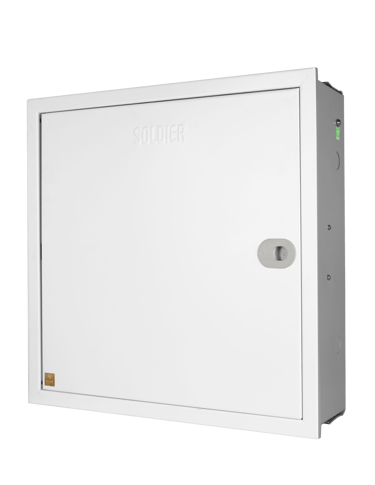

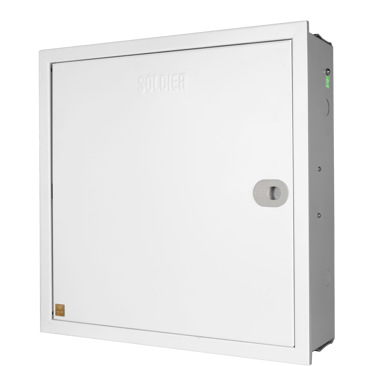

METAL DB'S WITH INGRESS PROTECTION (IP43)

SOLDIER Distribution Boards that provide flexibility and are a systematic approach to the ever increasing need for effective methods of the electrical distributions in domestic, commercial and industrial applications. SOLDIER Distribution Boards have been specially designed to meet all the technical requirements and ensure that the Distribution Boxes blend with any decor.

• Conforms to IS/IEC 8623-1

• Range available 4, 6, 8, 10, 12 & 16 ways

• Suitable for Flush and Surface mounting

• IP protection 43 for double door Dbs and IP protection 30 for single door Dbs

• IK 09 for double door Dbs

• Availble in CRCA sheet steel with anti - corrosive powder coating for superior finish

• Ready to use DBs with 100A insulated busbar, neutral link bar, earth bar, blanking plates

• Provision for DP MCB/Isolators/RCCB as Incomer and SP MCB as outgoings

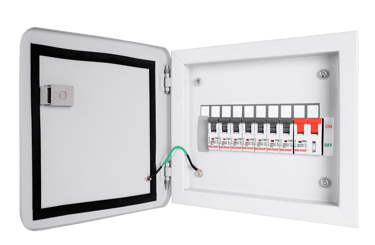

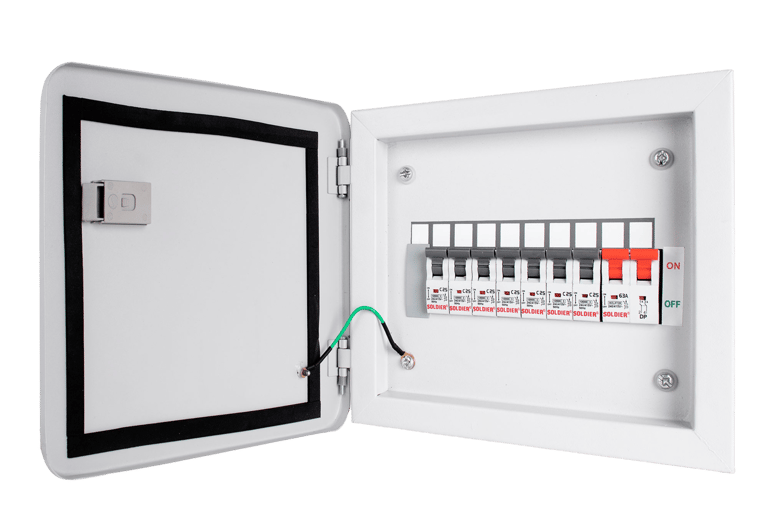

ULTRA SERIES

SOLDIER Distribution Boards that provide flexibility and are a systematic approach to the ever increasing need for effective methods of the electrical distributions in domestic, commercial and industrial applications. SOLDIER Ultra Series Distribution Boards have been specially designed to meet all the technical requirements and ensure that the Distribution Boxes blend well with any decor.

TPN WITH ROTARY SWITCH PHASE SELECTOR ENCLOSURES

FEATURE

• Conforms to IS/IEC 8623-1

• Range available 4, 6, 8 ways

• Suitable for Flush and Surface mounting

• IP protection 43 for double door Dbs

• IK 09 for double door Dbs

• Availble in CRCA sheet steel with anti - corrosive powder coating for superior finish

• Ready to use DBs with 3 nos. 63A Rotary switches , 3 nos. Indicator for phase identification, 100A insulated busbar, earthing bar, blanking plates.

• Provision for FP MCB/Isolators/RCCB as Incomer and SP MCB as outgoings

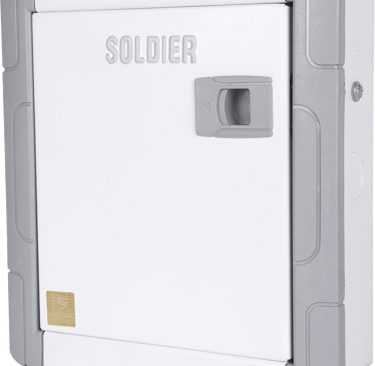

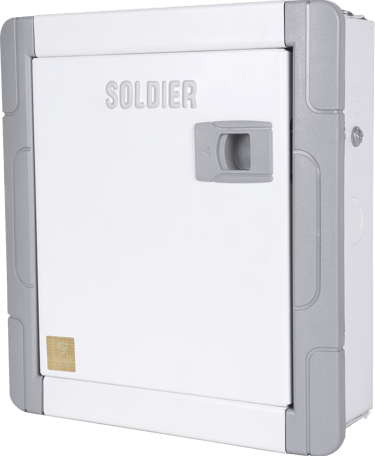

MCB ENCLOSURES

MCB enclosures aka MCB Boxes are used to connect the MCBs with the electrical circuit and provide them the mounting rails and necessary support. These also protect the electrical wiring from any direct contact with foreign objects or an accidental human touch.

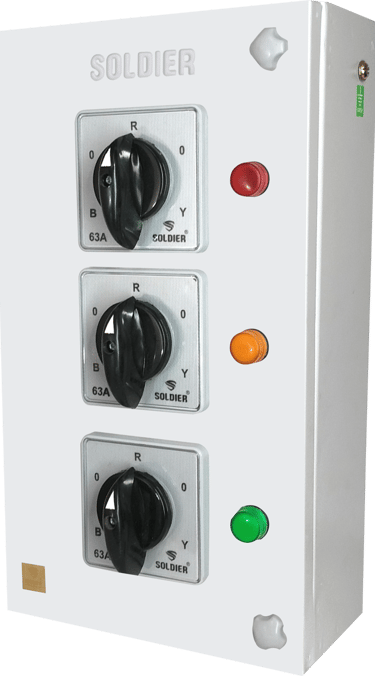

PHASE SELECTOR

Soldier PHASE SELECTOR Db’s provide flexibility in selecting and interchanging the phase in case there is power outage in one phase.

Benefits & Features :

• Suitable for surface & Flush mounting.

• Sufficient space for wiring.

• Pre-wiring with fitted rotary switch available.

• Available in both SPN & TPN.

• Ratings : 40A & 63A

A.C DISTRIBUTION BOARDS

Soldier AC DISTRIBUTION BOARD are aesthetically designed & highly durable with great functioning metal clad plug & sockets and is suitable for the prodution of applications like AC, Geyser etc.

Benefits & Features :

• High quality brass parts used for better conductivity.

• Conduit knockouts provided for different size cable connection.

• Provision of earthing terminal.

• Equipped with neutral link.

• Sockets made of almunium to provide high insulation as well durability.
